Description

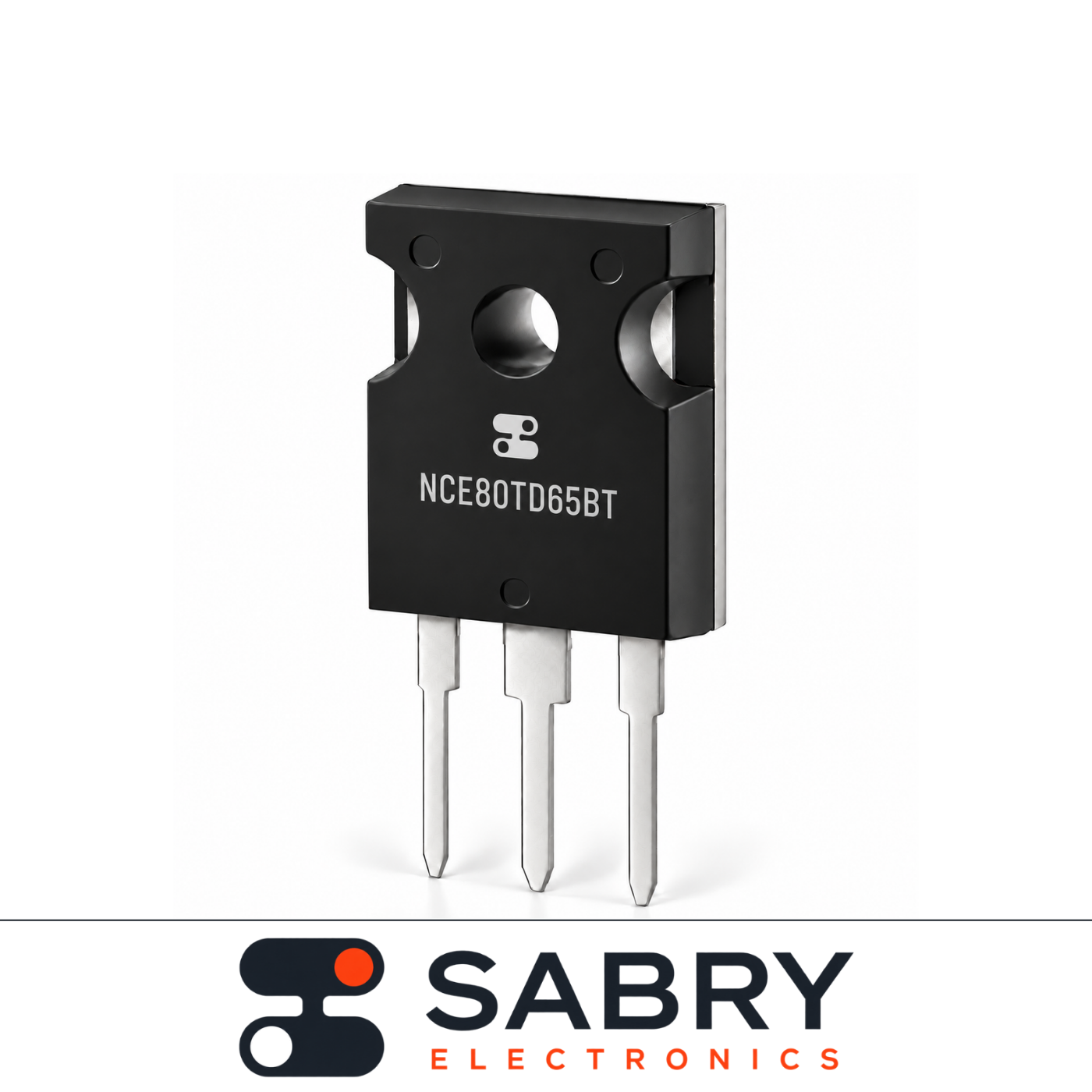

NCE80TD65BT is a fast-switching power IGBT for inverters, motor drives, and air-conditioning systems.
Key Specifications:
• Type: Trench Field-Stop IGBT
• Collector-Emitter Voltage: 650 V
• Continuous Collector Current: 160 A at 25°C case temperature / 80 A at 100°C
• On-State Voltage (VCE sat): 1.7 V typical at 15 V gate drive, 80 A, 25°C
• Total Gate Charge (Qg): 331 nC typical at 15 V gate drive, 480 V, 80 A
• Package: TO-247, 3-pin
• Mounting: Through Hole
