W3230 High-Temperature Controller (500°C)

Description

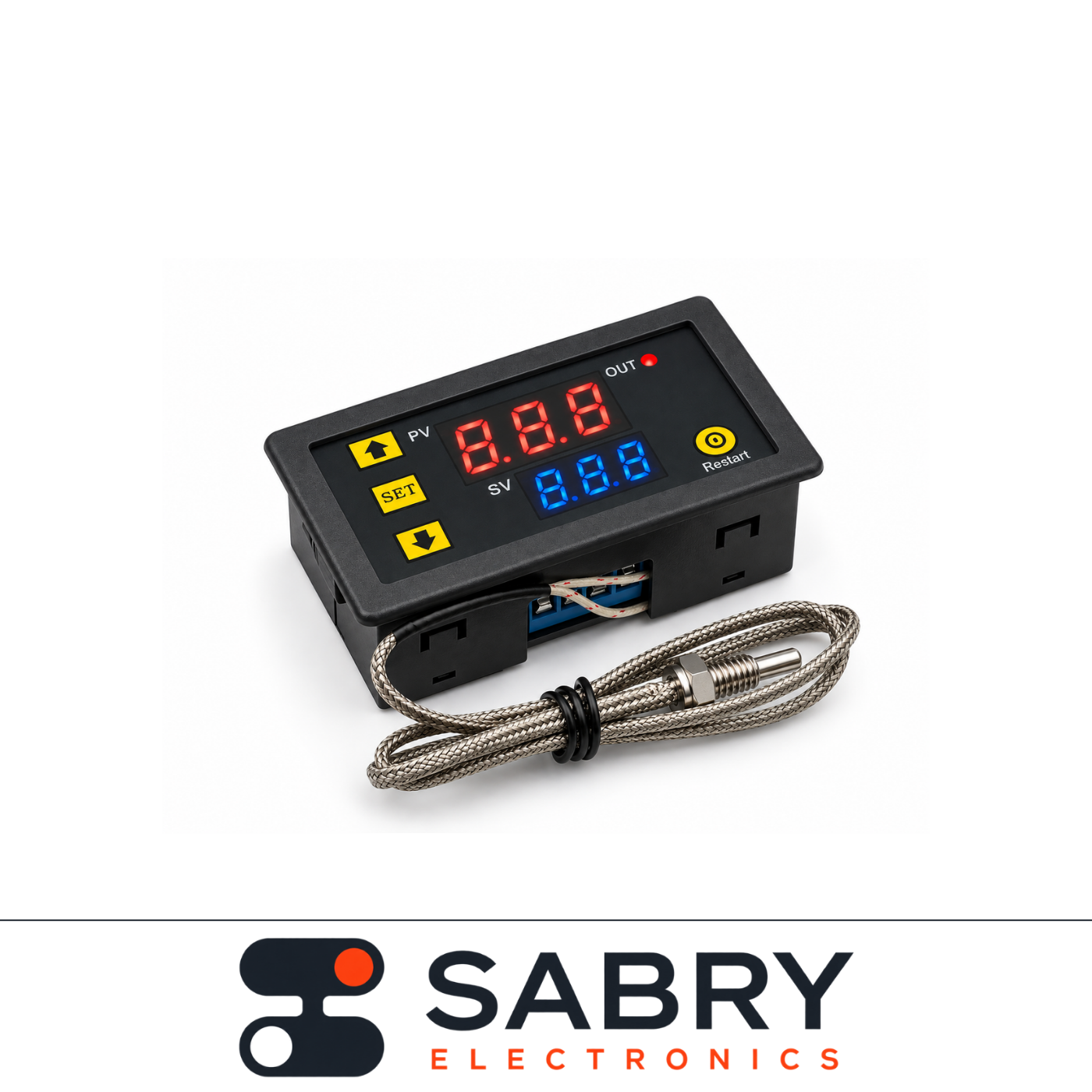

W3230 High-Temperature Microcomputer Digital Thermostat Controller with K-Type Thermocouple Metal Probe (-60°C to 500°C).

• Operating Input Voltage: DC 12V (Marked on back panel checkbox)
• Measurement Temperature Range: -60°C to 500°C / -76°F to 932°F
• Sensor Probe Type: High-Temperature K-Type M6 Threaded Metal Shielded Thermocouple
• Display Output Type: Dual 3-Digit LED Screen (Red PV Current Temp / Blue SV Target Temp)

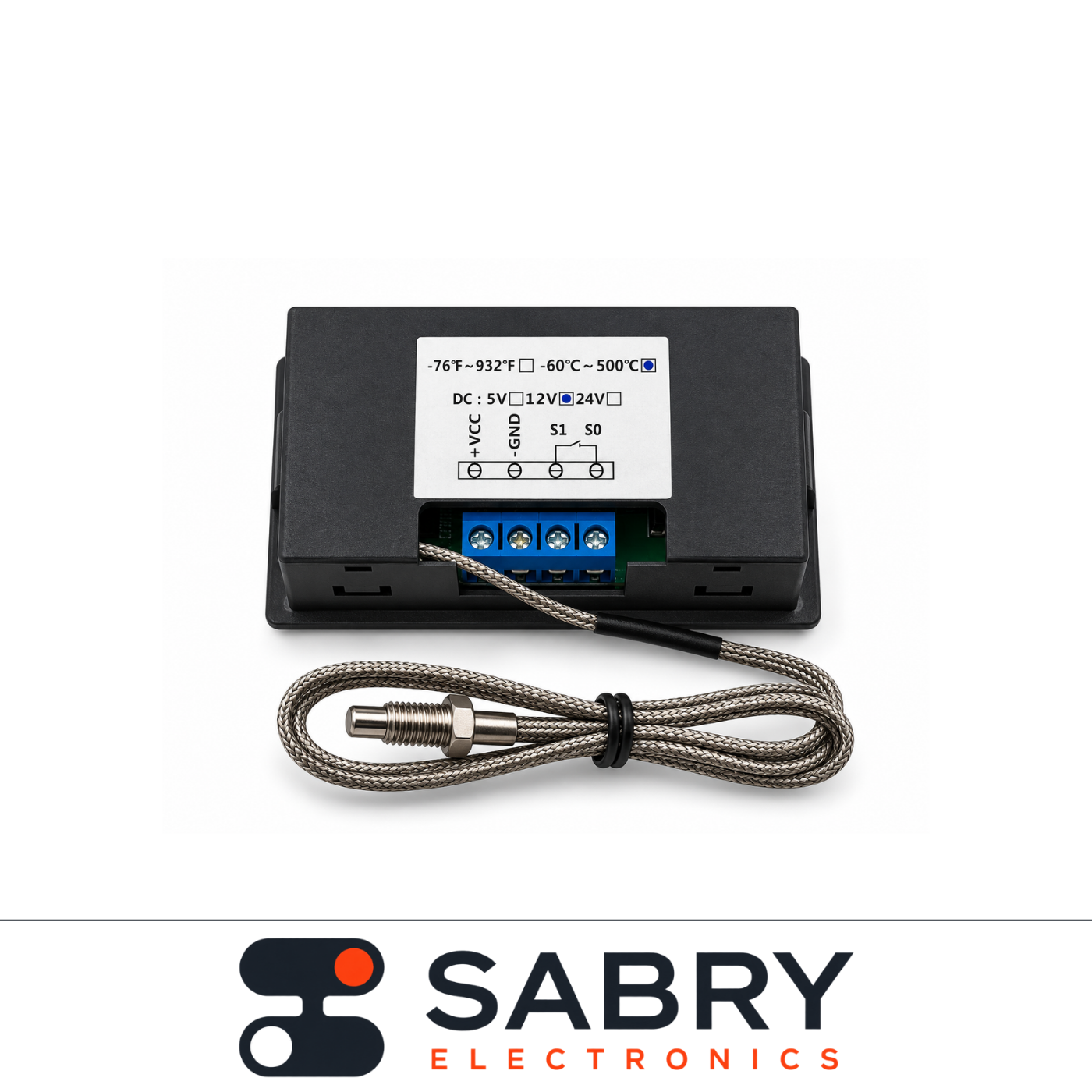

• Wiring Terminal Layout: +VCC (Power Supply Input), -GND (Ground), S1 & S0 (Passive Relay Switch Output Contacts)
