Type-C 2S/3S Battery Charger Module

Description

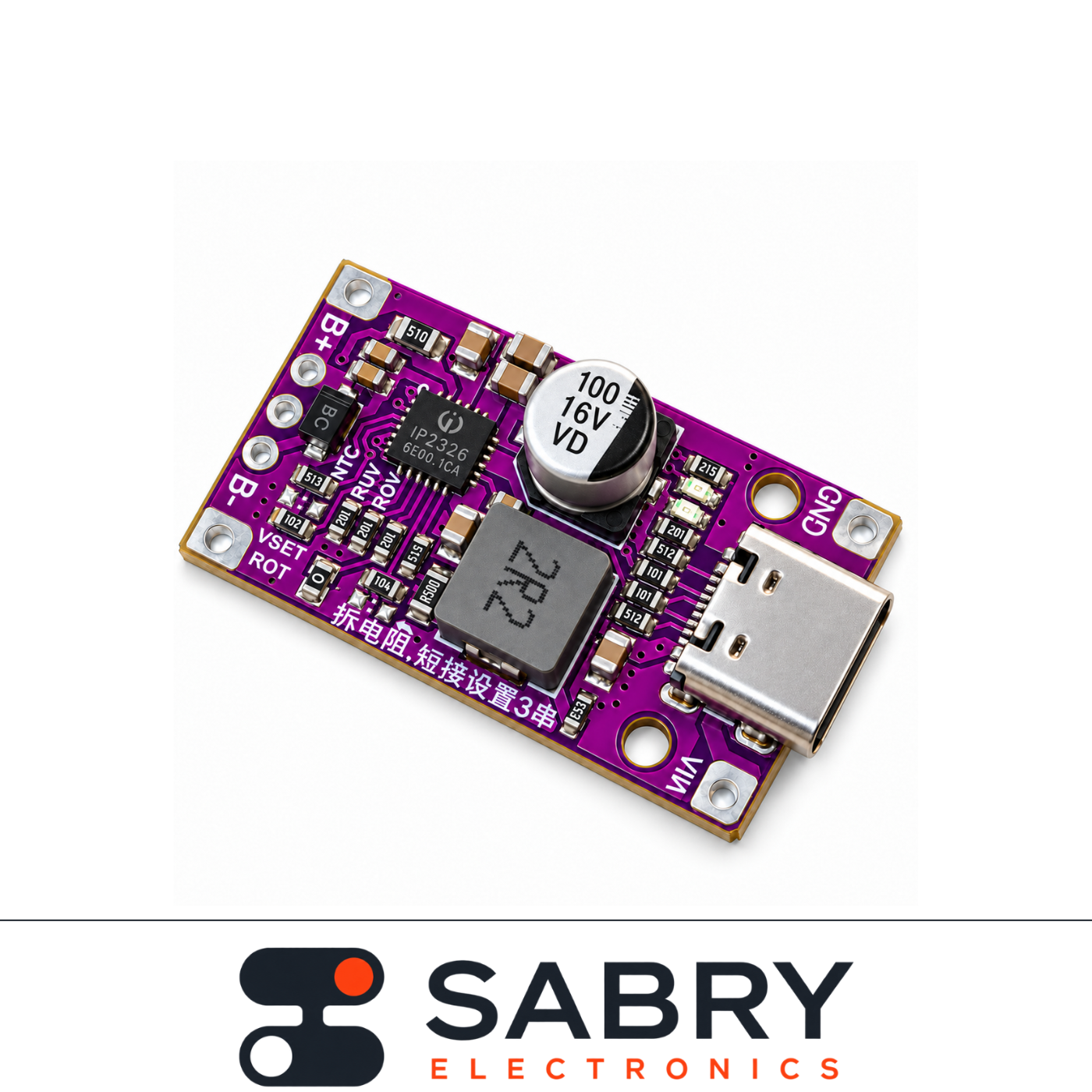

LX-LISC-V3 Type-C Input to 2S/3S Lithium-Ion Battery Boost Charger Module with IP2326 Main IC

• Model Code: LX-LISC-V3
• Main Control Chip: IP2326 (Synchronous boost charger controller)
• Input Interface: USB Type-C socket terminal
• Supported Configurations: Designed for 2S (two cells in series) or 3S (three cells in series) Li-ion/Li-Polymer battery packs

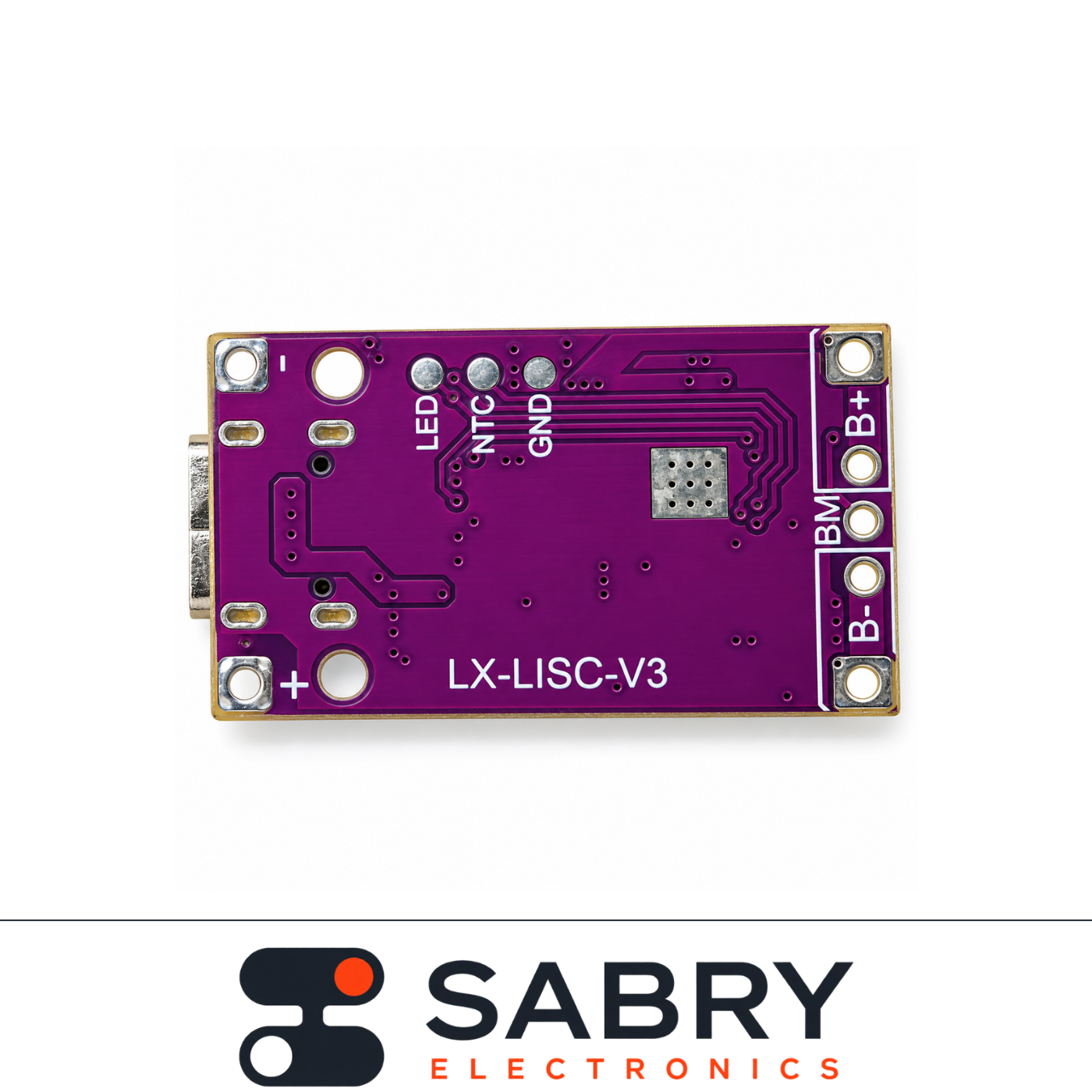

• On-Board Connections: B+ (Battery Positive), B- (Battery Negative), BM (Middle cell balance junction), NTC (Thermal protection connection), LED indicator terminals
