Description

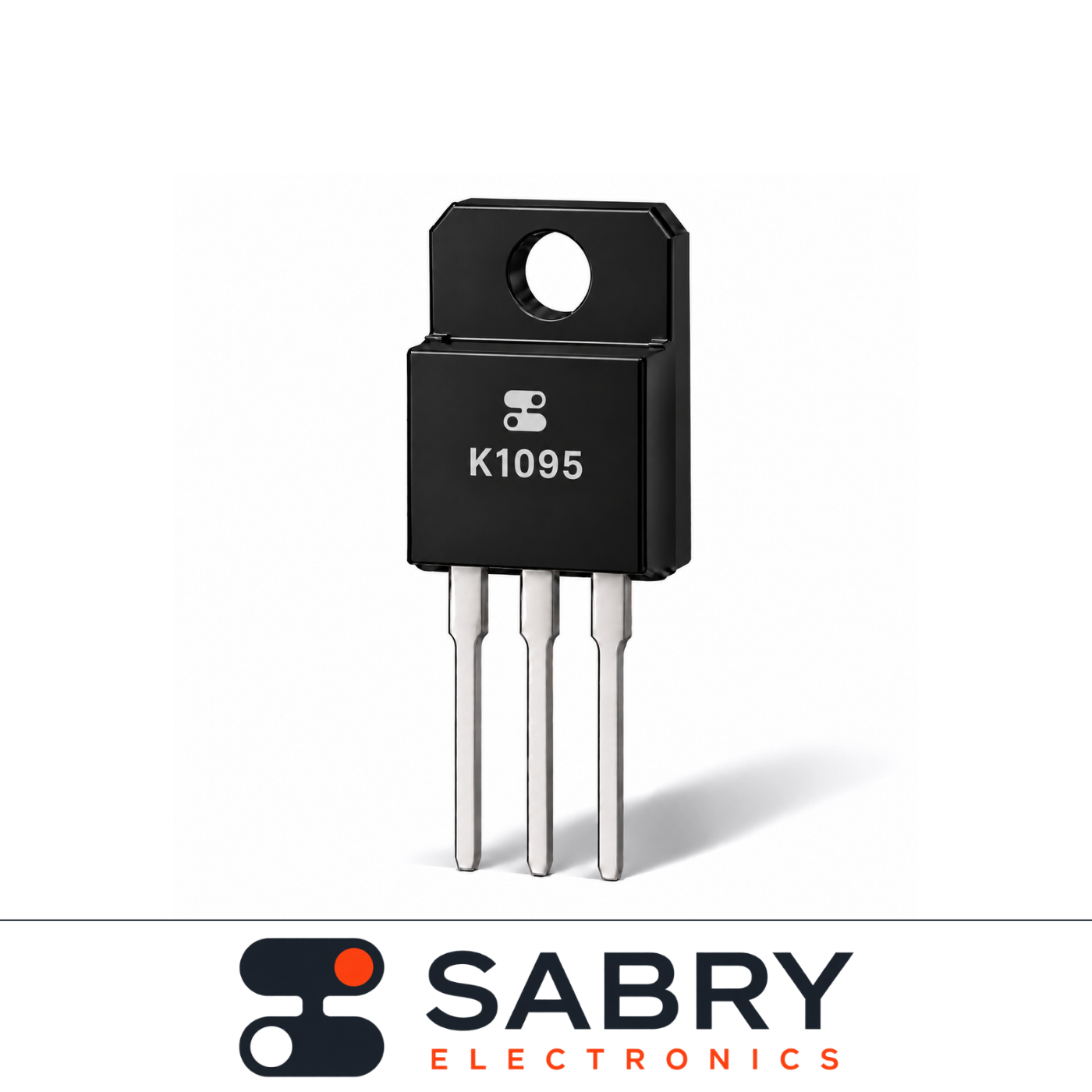

K1095 (2SK1095) is an N-channel power MOSFET for high-speed switching, motor control, and DC-DC converters.
Key Specifications:
• Type: N-Channel Power MOSFET
• Drain-Source Voltage: 60 V
• Continuous Drain Current: 25 A
• On-Resistance: 40 mΩ max. at 10 V gate drive, 15 A
• Low-Voltage Gate Drive: 60 mΩ max. at 4 V gate drive, 15 A
• Package: TO-220FM, fully insulated
• Mounting: Through Hole
• Applications: Motor drivers, DC-DC converters, power switches, and solenoid drivers
